Motor articulado KIT
KIT Electromechanical articulated motor HIGH SPEED BRUSHLESS, low voltage, super intensive use, with native encoder onboard, irreversible, ideal for swing gates with leaf up to 2.5 meters of length, with mechanical stopper in opening and closing. With digital controller (on AY/250/M motor) and standard version of short arms.
CARACTERISTICAS TÉCNICAS
| Power line supply: | 115V AC – 60Hz |
| Motor power supply: | 24V |
| Power rating: | 150W |
| Frequency of use: | Intensive use |
| Torque: | 50 – 200 N m |
| Operating temperature: | -20+55° C |
| Protection level: | IP44 |
| Reductor Type: | Irreversible |
| Manoeuvre speed: | 4 – 1,5 Rpm |
| Opening time: | 10-18 s |
| Limit switch: | Mechanical stopper in opening and closing |
| Onboard control unit: | B70/2ML (AY/250/M) |
| Encoder: | Digital native encoder SENSORLESS 48 PPR |
| Release system: | Internal lever or external lever with cord (optional) |
| Batteries recovery: | 2 internal batteries 12V DC 1.2 Amp/h (inside AY/250/S) |
| Operating cycles per day (opening/closing – 24 hours no stop): | 800 |
| Maximum dimension product in mm (L x W x H): | 245 x 189 x 270+60 |
| Product weight packed (Kg): | 28,7 |

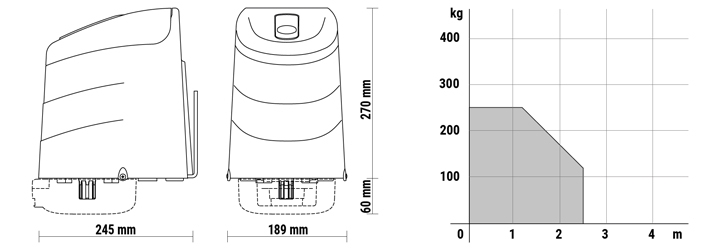

DIMENSÕES
